Infographic reports display general information for the system’s data with an easy-to-view visual style.
Only administrator-type users with access to Reports can create, edit, and view an infographic report. In this guide, we review how to create an infographic report.
Step 1: Creating a report
- To create an infographic report:

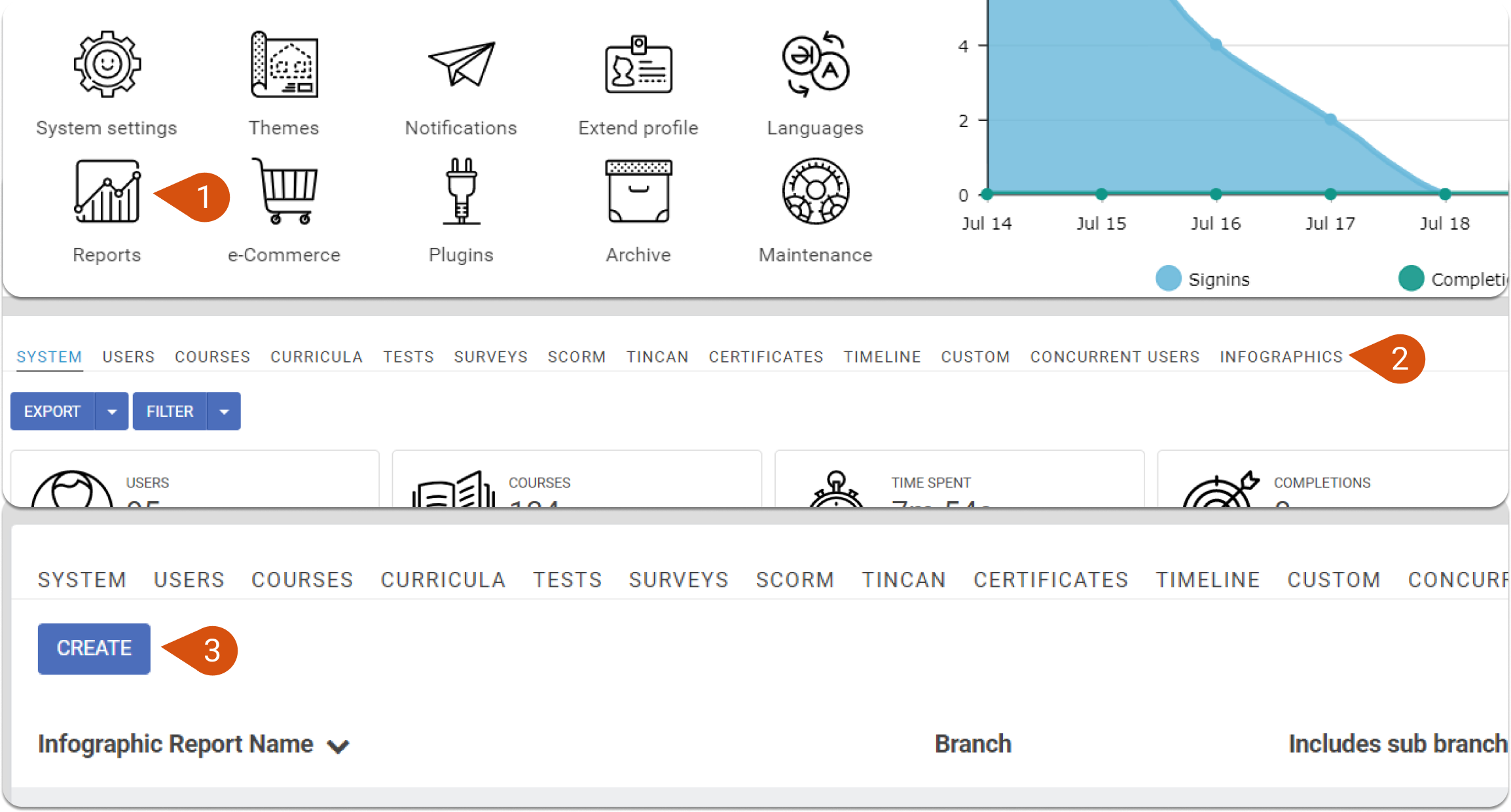

Go to Home -> Reports (1) -> Infographics (2) and click Create (3).

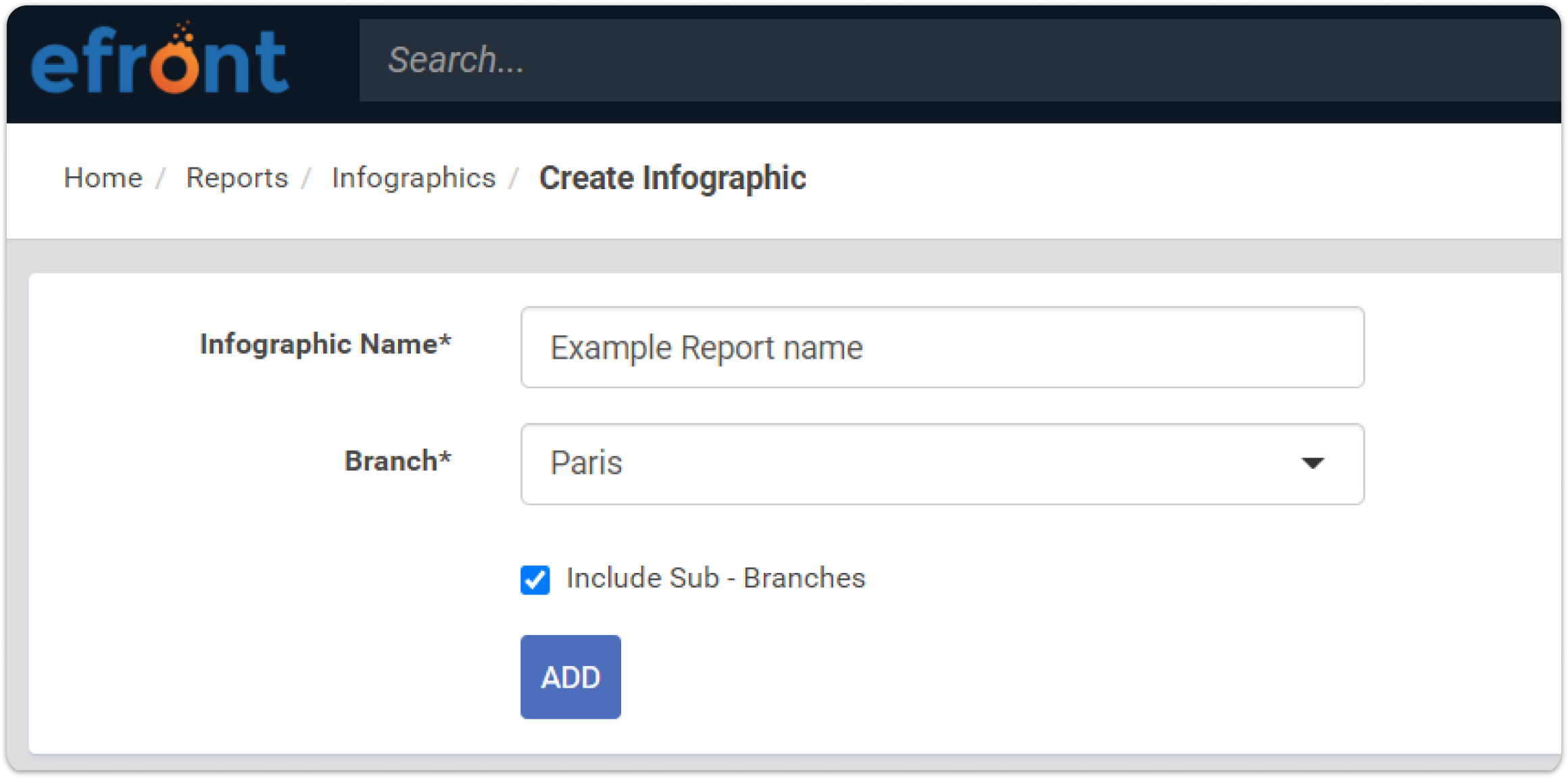

- Type in the report's name and select a Branch for the report. Leave the dropdown at - to include all branches. If you select a branch, you can then choose whether the report includes the sub-branches or only the selected branch.
After creating the report, proceed with adding sections to it.
Step 2: Adding sections
While in the Edit (1) view, select Add section (2).
A pop-up appears, where you can set the:
- Section Name (3).
- Section’s Type (4).
- Section’s Options (5).
There are currently 8 available section types.
| Note: You can select up to 5 options in sections with multiple options. A report can contain up to 15 sections, and an error message appears if you try to add more. |
Step 3: Viewing a report
The View tab displays all the sections of a report. Each section consists of the section’s name, and that section’s options.
Step 4: Exporting a report
You can export the infographic report as a PNG image using the Export button (1), displayed on a report’s main view page.
Each section type allows different available options (or data items). Sections cannot have more than 5 enabled options.
| Note: You can find more information on the available section types in this article: A guide to the infographic information. |
